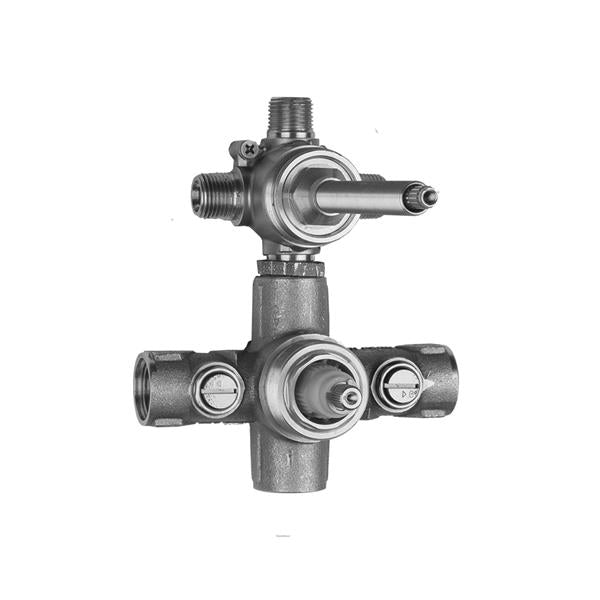

Jaclo - Thermostatic Valve with Built in 3-way Diverter/Volume Control with Shut Off

• Thermostatic valve with built in diverter/shut off for easier installation and clean appearance
• Top valve is a three way diverter consists of inlet for water & three outlets (see J-20688 for operation)
• Bottom valve is a Thermostatic mixing valve that maintains a constant water temperature automatically, regardless of incoming hot & cold water pressure & temperature. Set valve to desired temperature & no need to adjust further
• Anti-scald protection
• Diverter: ¹/₂" NPT male ports
• Thermostatic: ³/₄" NPT female ports
• 12 GPM flow @ 60 PSI
• Works well with low water pressure
• CALGreen Compliant

NOTE: THREE WAY DIVERTER CAN BE USED AS TWO WAY DIVERTER BY CAPPING ANY SINGLE PORT OR A VOLUME CONTROL BY CAPPING ANY TWO PORTS.

• Specification File

• Manufacturer's Part Number(s): J-TH34-688
