Brand:
Infinity Drain
Collection:
Bath,
Infinity Drain,
Infinity Drain Premium Center Drain - Series,
Shower Drains,
Showers & Accessories,
Finishing:
Satin Stainless,
Matte Black,
Oil Rubbed Bronze,
Polished Stainless,
Satin Bronze,
Specialty Finish,
Product Type:
Shower Drains

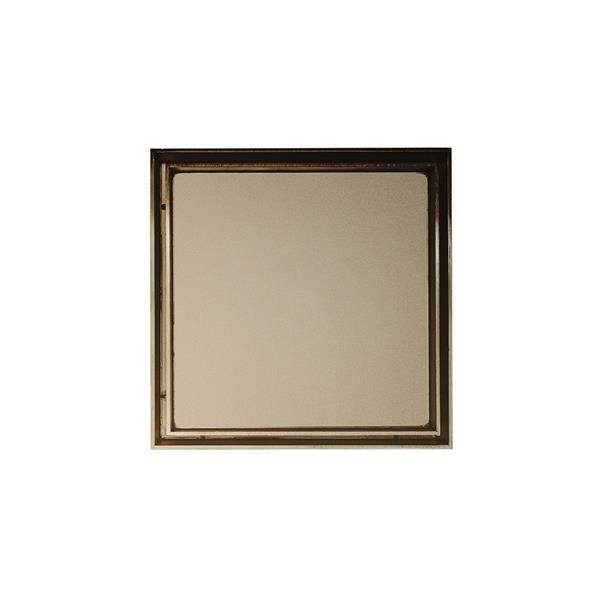

- Center Drain, Tile Insert Frame, Stainless Steel Throat, TDB 15 Kit with ABS Bonded Flange
- Center drain complete kit (strainer + bonded flange floor drain with 2 Inch , 3 Inch , and 4 Inch outlet)
Waterproofing: Liquid membrane, Fabric sheet
Tile-in 12 gauge, 316 stainless steel frame and body
Overall size: 5 Inch sq., Min. height above subfloor: 1-5/16 Inch
Capacity: 9 gallons per minute
Bonded flange floor drain with 2 Inch , 3 Inch , and 4 Inch outlet included in complete kit
Accepts flooring material up to 3/4 Inch in thickness
- Compatible with Liquid/Fabric waterproofing
Capacity: 9 gallons per minute
Bonded flange included
- Manufacturer's Part Number(s): TDB 15-A BK (Matte Black), TDB 15-A ORB (Oil Rubbed Bronze), TDB 15-A PS (Polished Stainless), TDB 15-A SB (Satin Bronze), TDB 15-A SPF (Specialty Finish), TDB 15-A SS (Satin Stainless)
