Brand:
Infinity Drain
Collection:
Bath,
Infinity Drain,
Infinity Drain Premium Center Drain - Series,
Shower Drains,
Showers & Accessories,
Finishing:
Satin Stainless,
Matte Black,
Oil Rubbed Bronze,
Polished Stainless,
Satin Bronze,
Specialty Finish,
Product Type:
Shower Drains

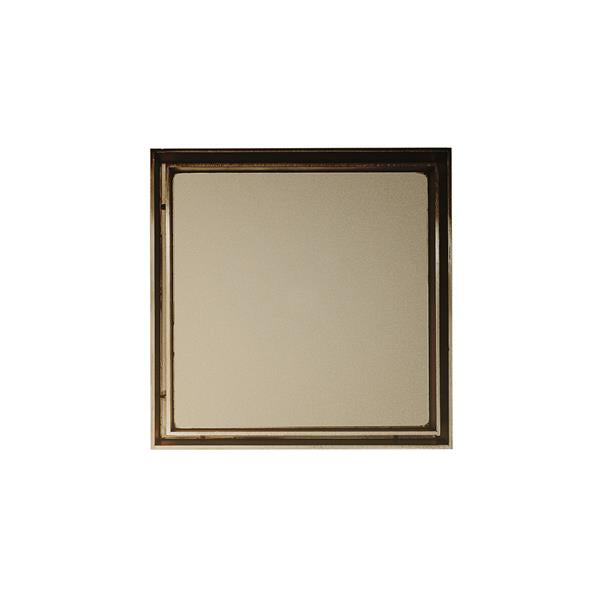

- Center Drain, Tile Insert Frame, Stainless Steel Throat, 5 Inch x5 Inch TD 15 kit with Cast Iron Drain Body 3 Inch NH outlet
- Center drain complete kit (strainer + clamp down floor drain 3 Inch outlet)
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Tile-in 12 gauge, 316 stainless steel frame and body
Overall size: 5 Inch sq., Min. height above waterproofing: 1-5/16 Inch
Capacity: 21 gallons per minute
3 Inch clamp down floor drain with 4 Inch throat (strainer size) included in complete kit
Accepts flooring material up to 3/4 Inch in thickness
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 21 gallons per minute
Drain body included
- Manufacturer's Part Number(s): TD 15-3I BK (Matte Black), TD 15-3I ORB (Oil Rubbed Bronze), TD 15-3I PS (Polished Stainless), TD 15-3I SB (Satin Bronze), TD 15-3I SPF (Specialty Finish), TD 15-3I SS (Satin Stainless)
