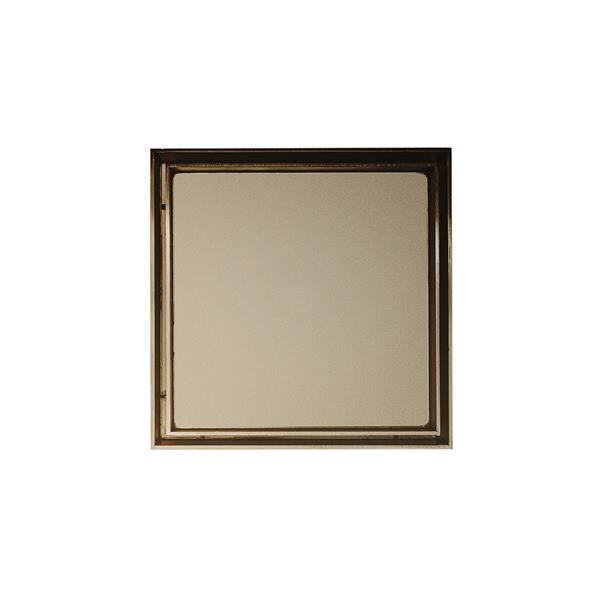

Infinity Drain - 5 x 5 Inch TD 15 Tile Insert High Flow Complete Kit

Infinity Drain - 5 x 5 Inch TD 15 Tile Insert High Flow Complete Kit

SKU:TD 15-3A SS

Write a review
Regular price $506.25
Regular price $675.00 Sale price $506.25
View full details
Brand:

Infinity Drain

Collection:
Bath, Infinity Drain, Infinity Drain Premium Center Drain - Series, Shower Drains, Showers & Accessories,
Finishing:
Satin Stainless, Matte Black, Oil Rubbed Bronze, Polished Stainless, Satin Bronze, Specialty Finish,
Product Type:
Shower Drains
  • Center Drain, Tile Insert Frame, Stainless Steel Throat, TD 15 Kit with ABS Drain Body 3 Inch Outlet
  • Center drain complete kit (strainer + clamp down floor drain 3 Inch outlet)
    Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    Tile-in 12 gauge, 316 stainless steel frame and body
    Overall size: 5 Inch sq., Min. height above waterproofing: 1-5/16 Inch
    Capacity: 21 gallons per minute
    3 Inch clamp down floor drain with 4 Inch throat (strainer size) included in complete kit
    Accepts flooring material up to 3/4 Inch in thickness
  • Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Rubber liner, Fiberglass
    Capacity: 21 gallons per minute
    Drain body included
  • Manufacturer's Part Number(s): TD 15-3A BK (Matte Black), TD 15-3A ORB (Oil Rubbed Bronze), TD 15-3A PS (Polished Stainless), TD 15-3A SB (Satin Bronze), TD 15-3A SPF (Specialty Finish), TD 15-3A SS (Satin Stainless)
