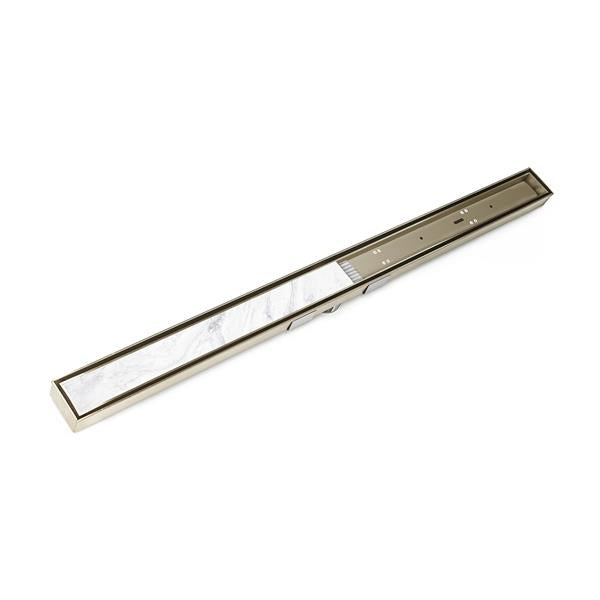

Infinity Drain - 48 Inch S-Stainless Steel Series Complete Kit

Infinity Drain - 48 Inch S-Stainless Steel Series Complete Kit

  • Site Sizeable, Tile Insert Frame, Stainless Steel Channel, 48 Inch Complete Kit for the Tile Insert 65
  • Site Sizeable: Modify length and locate outlet placement on site
    Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    12 gauge, 316 stainless steel tile-in top grate with stainless steel channel
    Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/4 Inch
    Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
    Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
    Accepts flooring material up to 3/4 Inch in thickness
  • Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    Capacity: 9 gallons per minute
    Drain body NOT included
  • Manufacturer's Part Number(s): STIF AS 6548 SS, STIF AS 6548 PS, STIF AS 6548 SB, STIF AS 6548 ORB, STIF AS 6548 BK
$1,106.25 $1,475.00
| /
