Product Type
Shower Drains

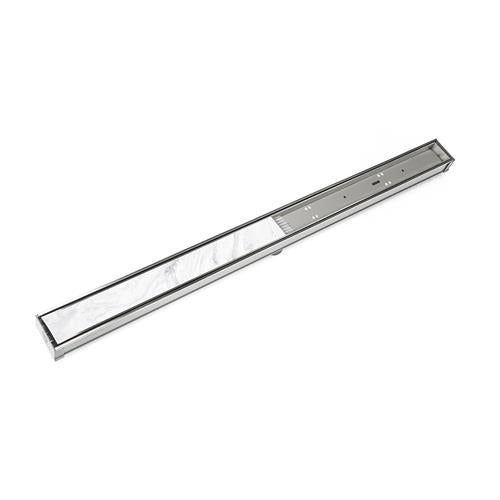

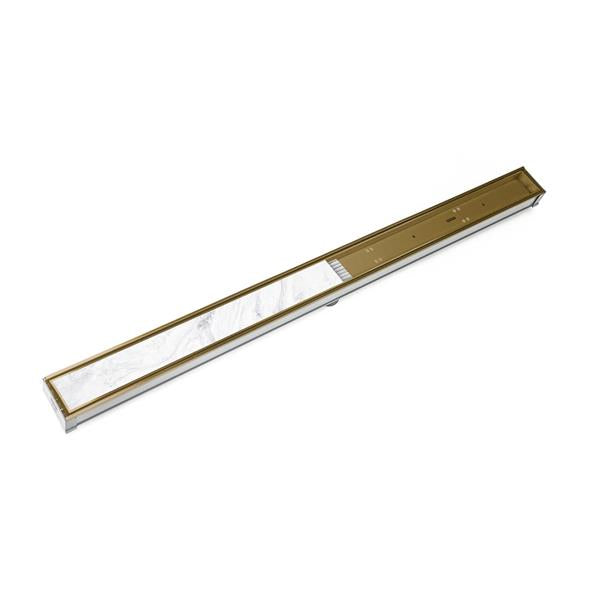

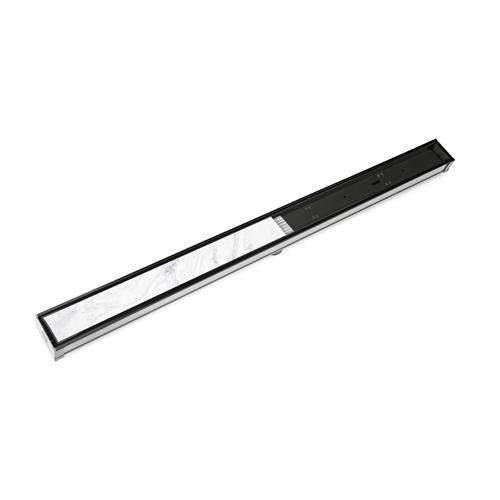

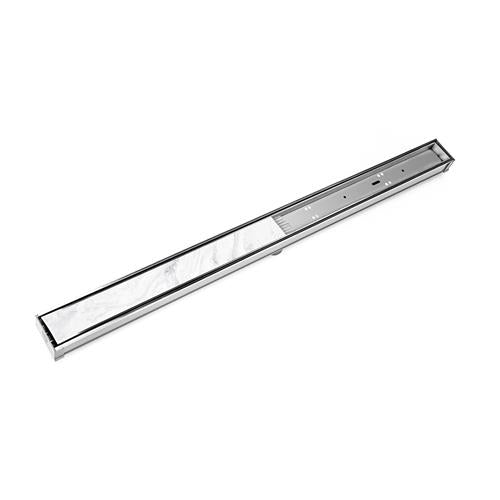

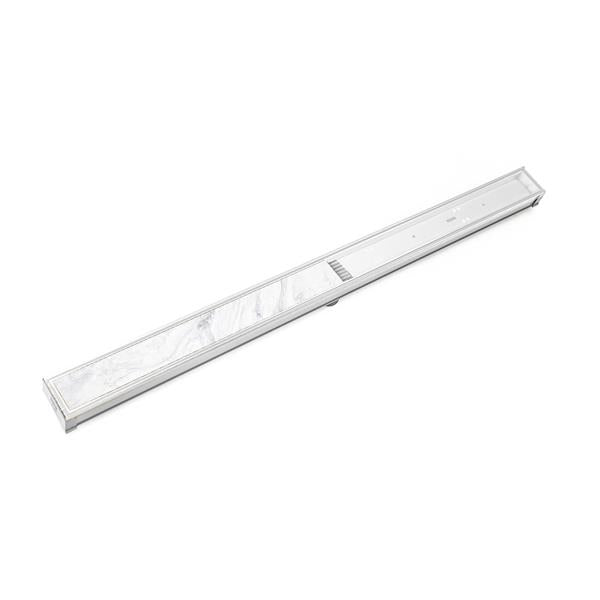

- Site Sizeable, Tile Insert Frame, PVC Channel, 60 Inch Complete Kit for the Tile Insert 65
- Site Sizeable: Modify length and locate outlet placement on site
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel tile-in top grate with PVC channel
Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/4 Inch
Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
Accepts flooring material up to 3/4 Inch in thickness
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
Drain body NOT included
- Manufacturer's Part Number(s): STIF 6560 PG (Polished Gold), STIF 6560 PB (Polished Brass), STIF 6560 ORB (Oil Rubbed Bronze), STIF 6560 MW (Matte White), STIF 6560 GM (Gunmetal), STIF 6560 BK (Matte Black), STIF 6560 SB (Satin Bronze), STIF 6560 SC (Satin Champagne), STIF 6560 SS (Satin Stainless), STIF 6560 PS (Polished Stainless)
