Shower Drains

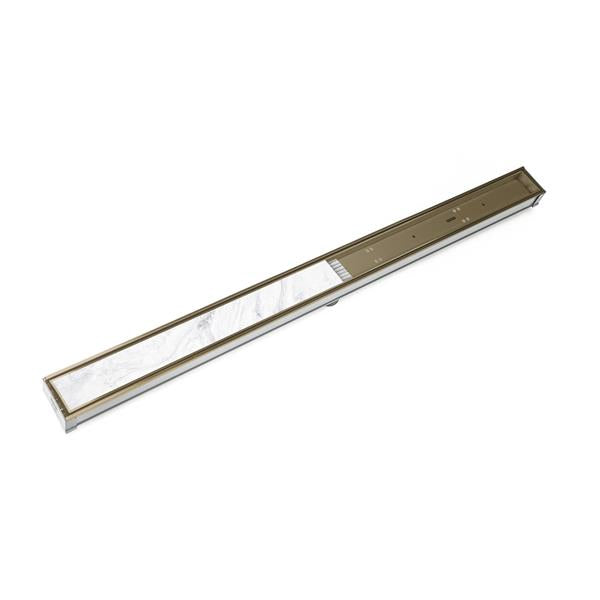

- Site Sizeable, Tile Insert Frame, PVC Channel, 48 Inch Complete Kit for S-TIF 65
- Site Sizeable: Modify length and locate outlet placement on site
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel tile-in top grate with PVC channel
Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/4 Inch
Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
Accepts flooring material up to 3/4 Inch in thickness
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
Drain body NOT included
- Manufacturer's Part Number(s): STIF 6548 PB (Polished Brass), STIF 6548 PG (Polished Gold), STIF 6548 PS (Polished Stainless), STIF 6548 SB (Satin Bronze), STIF 6548 GM (Gunmetal), STIF 6548 SC (Satin Champagne), STIF 6548 MW (Matte White), STIF 6548 BK (Matte Black), STIF 6548 SS (Satin Stainless), STIF 6548 ORB (Oil Rubbed Bronze)
