Product Type
Shower Drains

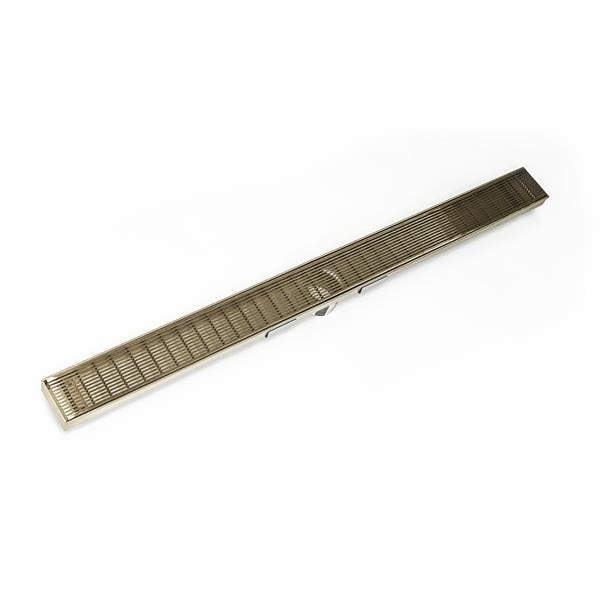

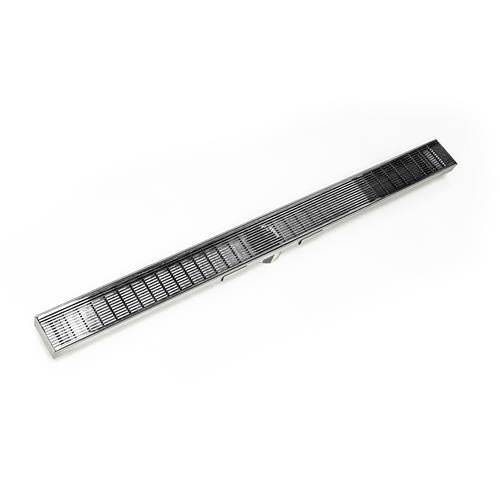

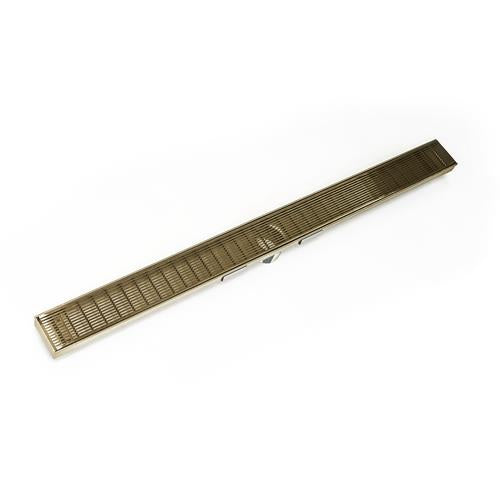

- Site Sizeable, 2-7/8 Inch Wedge Wire, Stainless Steel Channel, 96 Inch Complete Kit for S-AS 65 (formerly AS 6596 PS)
- Site Sizeable: Modify length and locate outlet placement on site
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/16 Inch
Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
Drain body NOT included
- Manufacturer's Part Number(s): SAS 6596 SS (Satin Stainless), SAS 6596 SC (Satin Champagne), SAS 6596 SB (Satin Bronze), SAS 6596 PS (Polished Stainless), SAS 6596 PB (Polished Brass), SAS 6596 ORB (Oil Rubbed Bronze), SAS 6596 MW (Matte White), SAS 6596 GM (Gunmetal), SAS 6596 BK (Matte Black), SAS 6596 PG (Polished Gold)
