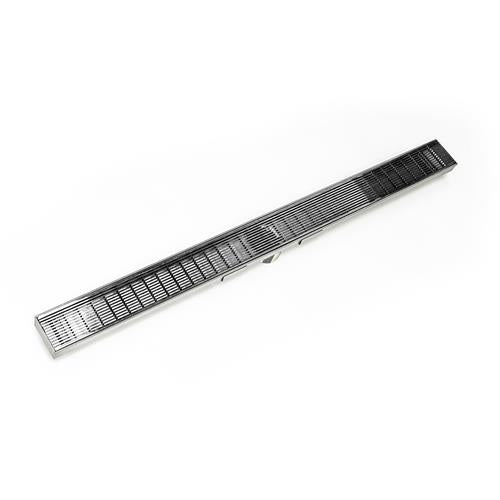

Infinity Drain - 48 Inch S-Stainless Steel Series Complete Kit

Infinity Drain - 48 Inch S-Stainless Steel Series Complete Kit

SKU:SAS 6548 SS

Write a review
Regular price $1,188.75
Regular price $1,585.00 Sale price $1,188.75
View full details
Collection
All, Bath, Infinity Drain, Infinity Drain SS - Site Sizable - Stainless Steel - Series, Shower Drains, Showers & Accessories,
Finishing
Satin Stainless, Matte Black, Oil Rubbed Bronze, Polished Stainless, Satin Bronze, Specialty Finish,
Product Type
Shower Drains
  • Site Sizeable, 2-7/8 Inch Wedge Wire, Stainless Steel Channel, 48 Inch Complete Kit for S-AS 65 (formerly AS 6548 PS)
  • Site Sizeable: Modify length and locate outlet placement on site
    Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
    Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/16 Inch
    Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
    Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
  • Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    Capacity: 9 gallons per minute
    Drain body NOT included
  • Manufacturer's Part Number(s): SAS 6548 BK (Matte Black), SAS 6548 ORB (Oil Rubbed Bronze), SAS 6548 PS (Polished Stainless), SAS 6548 SB (Satin Bronze), SAS 6548 SPF (Specialty Finish), SAS 6548 SS (Satin Stainless)
