Product Type
Shower Drains

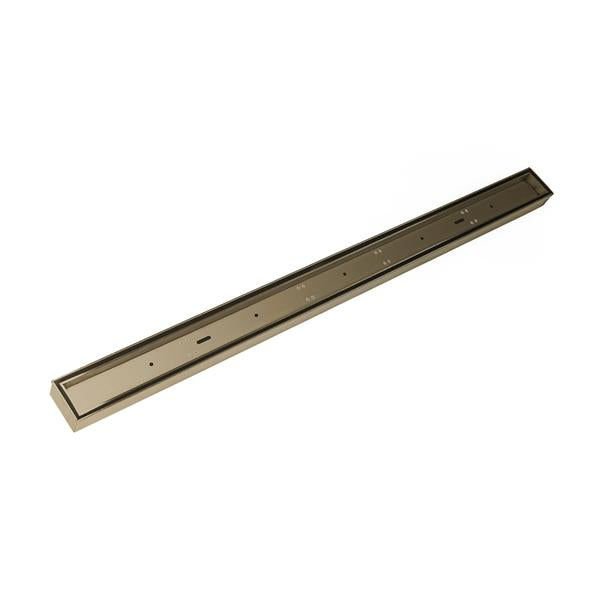

- Fixed Length, Tile Insert Frame, Stainless Steel Channel, 60 Inch Complete Kit for FXTIF 65
- Fixed Length: Pre-pitched channel with set length with center outlet location
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel tile-in top grate with stainless steel channel
Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/16 Inch
Capacity: 9 gallons per minute
Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
Accepts flooring material up to 3/4 Inch in thickness
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
2 Inch threaded waste line connection via TNAS threaded outlet (included with channel)
Drain body NOT included
- Manufacturer's Part Number(s): FXTIF 6560 BK (Matte Black), FXTIF 6560 ORB (Oil Rubbed Bronze), FXTIF 6560 PS (Polished Stainless), FXTIF 6560 SB (Satin Bronze), FXTIF 6560 SPF (Specialty Finish), FXTIF 6560 SS (Satin Stainless)
