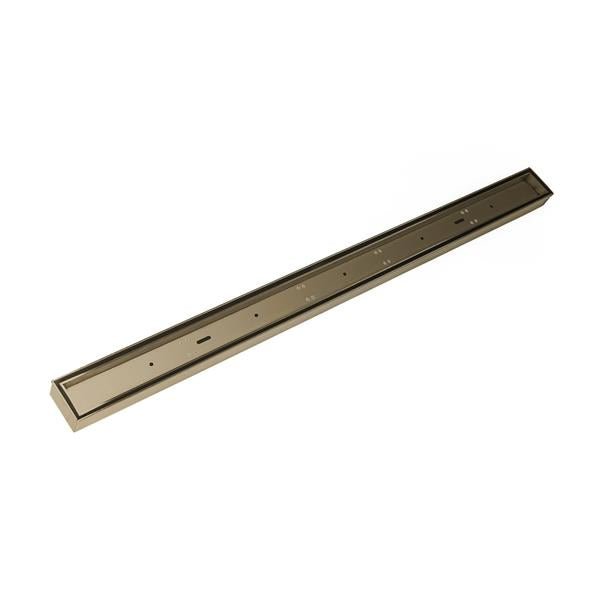

Infinity Drain - 48 Inch FX Series Complete Kit

Infinity Drain - 48 Inch FX Series Complete Kit

SKU:FXTIF 6548 SS

Write a review
Regular price $851.25
Regular price $1,135.00 Sale price $851.25
View full details
Collection
All, Bath, Infinity Drain, Infinity Drain FX - Fixed Length - Series, Shower Drains, Showers & Accessories,
Finishing
Satin Stainless, Matte Black, Oil Rubbed Bronze, Polished Stainless, Satin Bronze, Specialty Finish,
Product Type
Shower Drains
  • Fixed Length, Tile Insert Frame, Stainless Steel Channel, 48 Inch Complete Kit for FXTIF 65
  • Fixed Length: Pre-pitched channel with set length with center outlet location
    Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    12 gauge, 316 stainless steel tile-in top grate with stainless steel channel
    Overall width: 2-7/8 Inch , Min. height above waterproofing: 1-3/16 Inch
    Capacity: 9 gallons per minute
    Requires 2 Inch clamp down floor drain with 2 Inch throat (strainer size). Not included in complete kit.
    Accepts flooring material up to 3/4 Inch in thickness
  • Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
    Capacity: 9 gallons per minute
    2 Inch threaded waste line connection via TNAS threaded outlet (included with channel)
    Drain body NOT included
  • Manufacturer's Part Number(s): FXTIF 6548 BK (Matte Black), FXTIF 6548 ORB (Oil Rubbed Bronze), FXTIF 6548 PS (Polished Stainless), FXTIF 6548 SB (Satin Bronze), FXTIF 6548 SPF (Specialty Finish), FXTIF 6548 SS (Satin Stainless)
