Product Type
Shower Drains

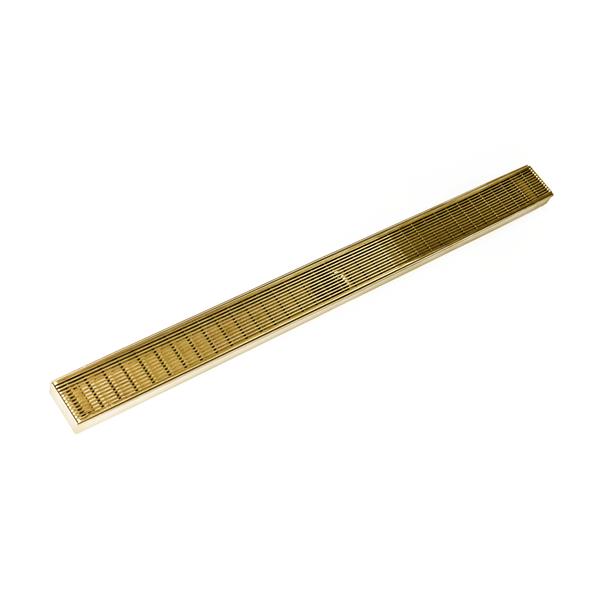

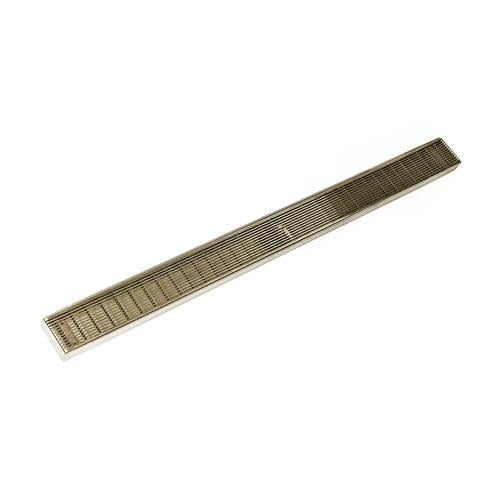

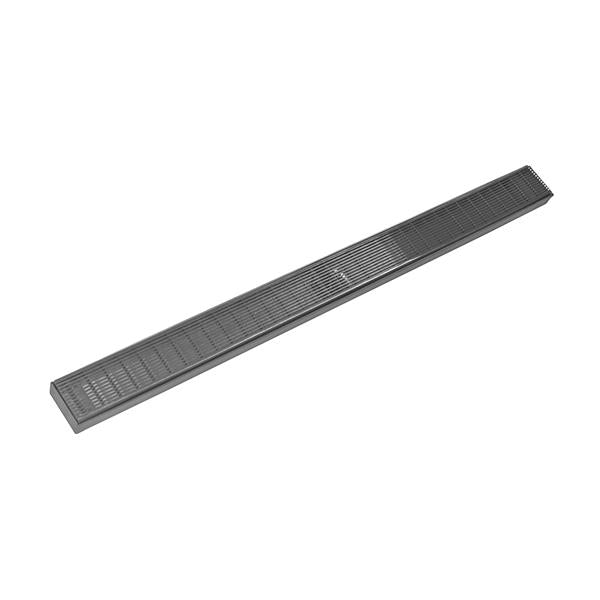

- Fixed Length, 2-7/8 Inch Wedge Wire, Stainless Steel Channel, 48 Inch Complete Kit for FXAS 65
- Fixed Length: Pre-pitched channel with set length with center outlet location
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
Overall width: 5-3/8 Inch , Min. height above waterproofing: 1-3/16 Inch
Capacity: 21 gallons per minute
3 Inch clamp down floor drain with 4 Inch throat (strainer size) included in complete kit
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
2 Inch threaded waste line connection via TNAS threaded outlet (included with channel)
Drain body NOT included
- Manufacturer's Part Number(s): FXAS 6548 BK (Matte Black), FXAS 6548 ORB (Oil Rubbed Bronze), FXAS 6548 PS (Polished Stainless), FXAS 6548 SB (Satin Bronze), FXAS 6548 SPF (Specialty Finish), FXAS 6548 SS (Satin Stainless)
