Shower Drains

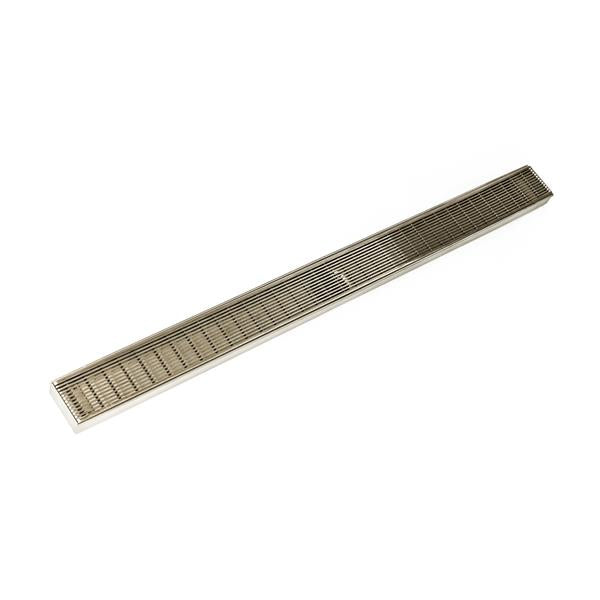

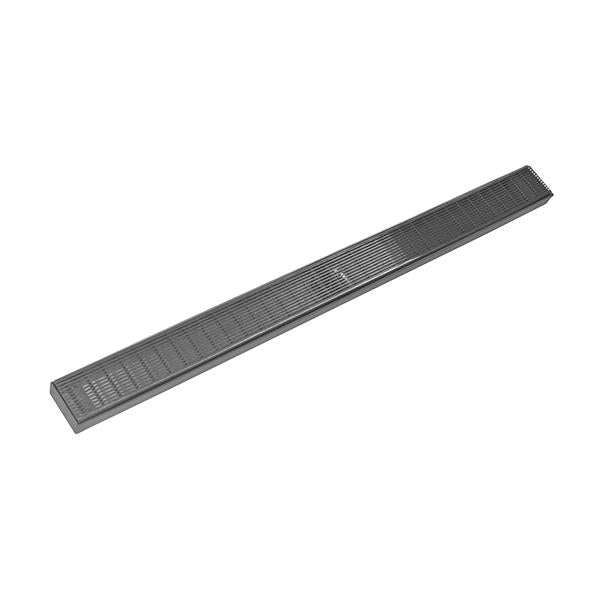

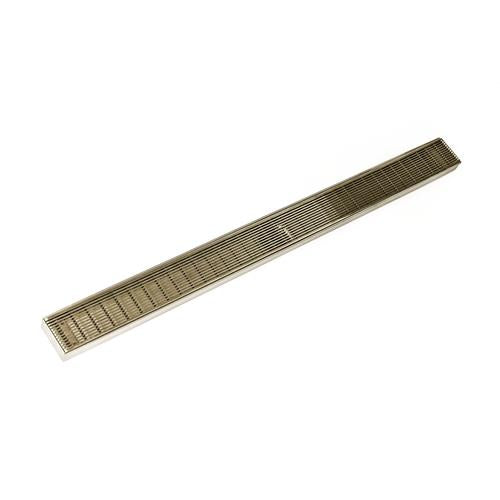

- Fixed Length, 2-7/8 Inch Wedge Wire, Stainless Steel Channel, 32 Inch Complete Kit for FXAS 65
- Fixed Length: Pre-pitched channel with set length with center outlet location
Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
Overall width: 5-3/8 Inch , Min. height above waterproofing: 1-3/16 Inch
Capacity: 21 gallons per minute
3 Inch clamp down floor drain with 4 Inch throat (strainer size) included in complete kit
- Compatible with Traditional Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
Capacity: 9 gallons per minute
2 Inch threaded waste line connection via TNAS threaded outlet (included with channel)
Drain body NOT included
- Manufacturer's Part Number(s): FXAS 6532 ORB (Oil Rubbed Bronze), FXAS 6532 BK (Matte Black), FXAS 6532 PS (Polished Stainless), FXAS 6532 SB (Satin Bronze), FXAS 6532 SC (Satin Champagne), FXAS 6532 SS (Satin Stainless), FXAS 6532 PG (Polished Gold), FXAS 6532 PB (Polished Brass), FXAS 6532 GM (Gunmetal), FXAS 6532 MW (Matte White)
