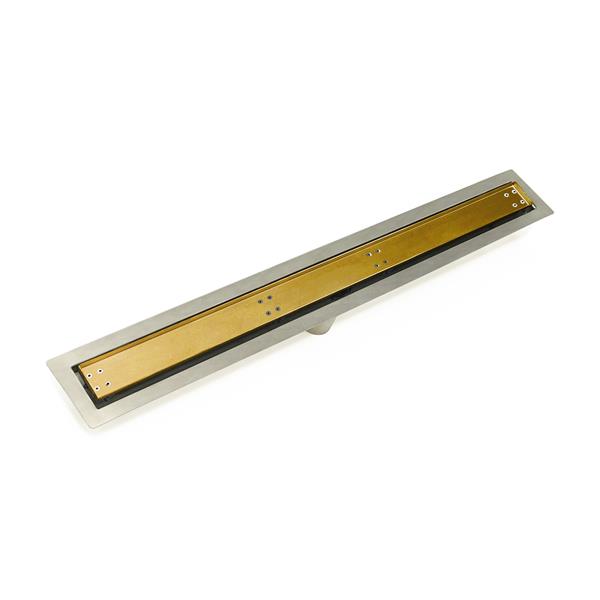

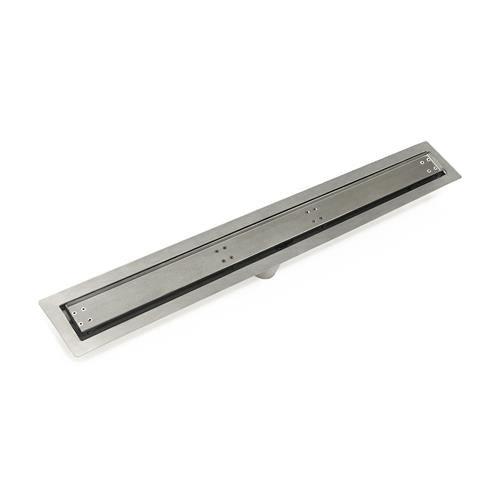

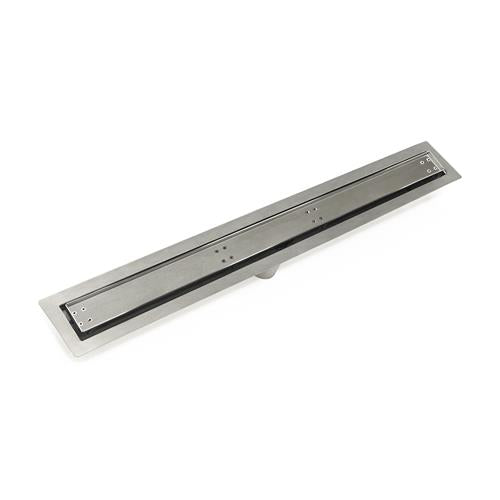

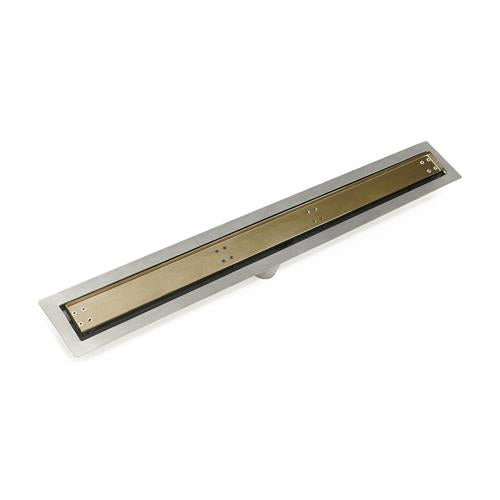

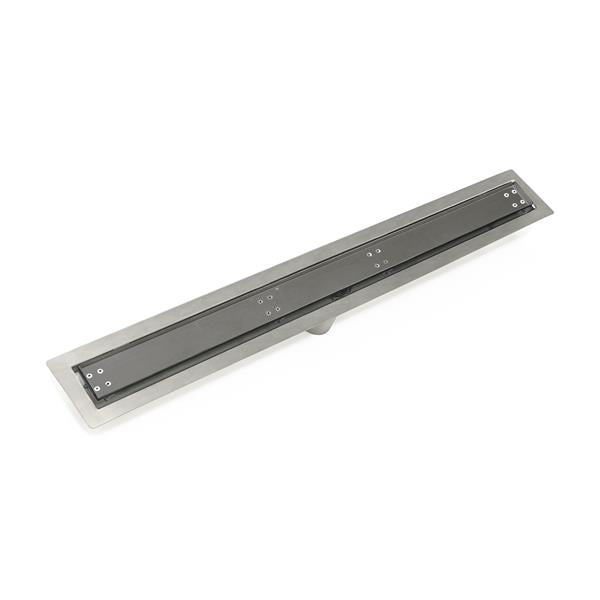

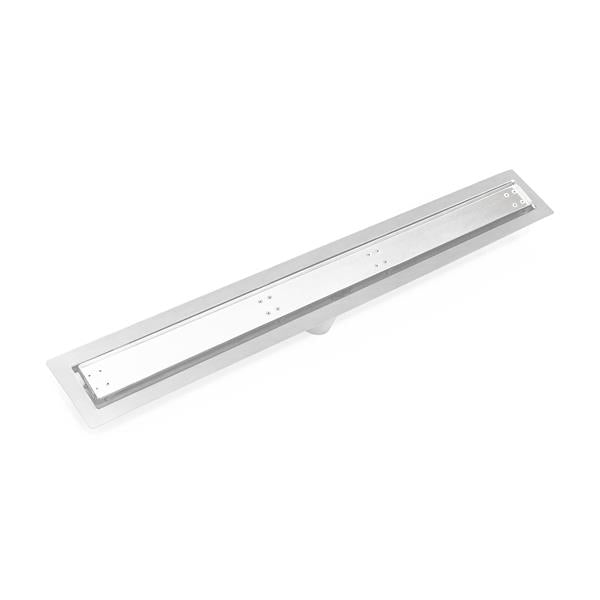

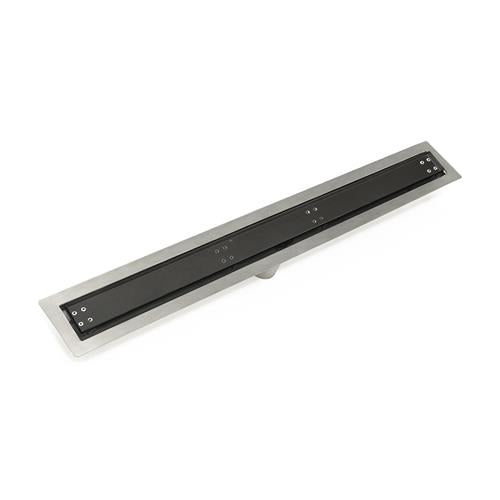

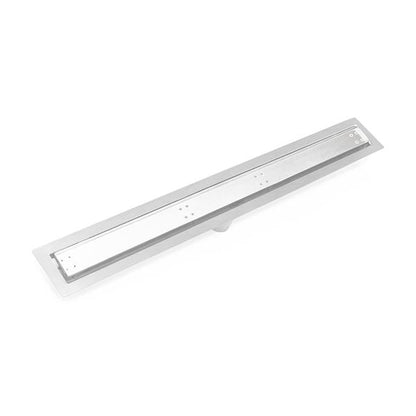

Infinity Drain - 48 Inch FF Series Complete Kit

Infinity Drain - 48 Inch FF Series Complete Kit

SKU:FFTIF 6548 SS

Write a review
Regular price $765.00
Regular price $1,020.00 Sale price $765.00
View full details
Collection
All, Bath, Infinity Drain, Infinity Drain FF - Fixed Flange - Series, Shower Drains, Showers & Accessories,
Finishing
Satin Stainless, Matte Black, Oil Rubbed Bronze, Polished Stainless, Satin Bronze, Specialty Finish,
Product Type
Shower Drains
  • Fixed Flange, Tile Insert Frame, Stainless Steel Channel, 48 Inch Complete Kit for FFTIF 65
  • Fixed Flange: Pre-pitched channel with set length with center outlet location
    Waterproofing: Liquid membrane, Fabric sheet
    16 gauge, 304 stainless steel tile-in top grate with stainless steel channel
    Finished width: 2 Inch , Min. height above subfloor: 1-3/16 Inch
    Capacity: 9 gallons per minute
    No-hub connection to waste line with rubber coupling (not included)
    Recess channel into subfloor with placement brackets ST 65
    Metal edge detail available ME 96
  • Compatible with Liquid/Fabric waterproofing
    Capacity: 9 gallons per minute
    2 Inch No-hub outlet connection via rubber coupling (not included with channel)
  • Manufacturer's Part Number(s): FFTIF 6548 BK (Matte Black), FFTIF 6548 ORB (Oil Rubbed Bronze), FFTIF 6548 PS (Polished Stainless), FFTIF 6548 SB (Satin Bronze), FFTIF 6548 SPF (Specialty Finish), FFTIF 6548 SS (Satin Stainless)
