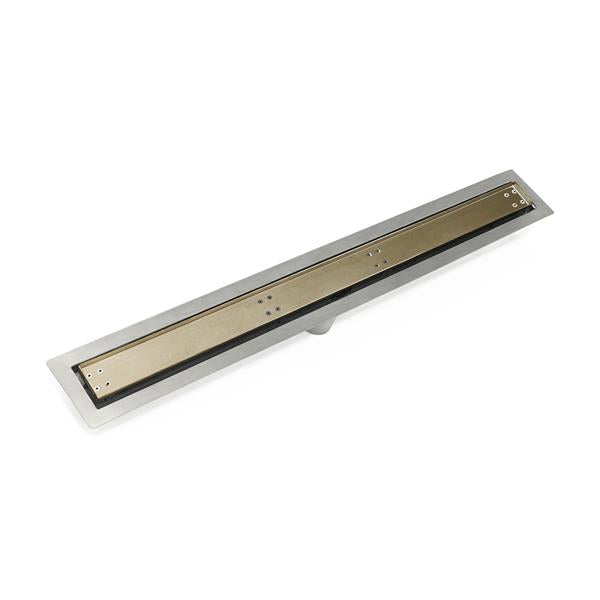

Infinity Drain - 24 Inch FF Series Complete Kit

Infinity Drain - 24 Inch FF Series Complete Kit

SKU:FFTIF 6524 SS

Write a review
Regular price $390.00
Regular price $520.00 Sale price $390.00
This item qualifies for Free Shipping Shipping calculated at checkout.
View full details
Collection
All, Bath, Best Sellers, Infinity Drain, Infinity Drain FF - Fixed Flange - Series, Shower Drains, Showers & Accessories,
Finishing
Satin Stainless, Matte Black, Oil Rubbed Bronze, Polished Stainless, Satin Bronze, Gunmetal, Matte White, Polished Brass, Polished Gold, Satin Champagne,
Product Type
Shower Drains
  • Fixed Flange, Tile Insert Frame, Stainless Steel Channel, 24 Inch Complete Kit for FFTIF 65
  • Fixed Flange: Pre-pitched channel with set length with center outlet location
    Waterproofing: Liquid membrane, Fabric sheet
    16 gauge, 304 stainless steel tile-in top grate with stainless steel channel
    Finished width: 2 Inch , Min. height above subfloor: 1-3/16 Inch
    Capacity: 9 gallons per minute
    No-hub connection to waste line with rubber coupling (not included)
    Recess channel into subfloor with placement brackets ST 65
    Metal edge detail available ME 96
  • Compatible with Liquid/Fabric waterproofing
    Capacity: 9 gallons per minute
    2 Inch No-hub outlet connection via rubber coupling (not included with channel)
  • Manufacturer's Part Number(s): FFTIF 6524 MW (Matte White), FFTIF 6524 ORB (Oil Rubbed Bronze), FFTIF 6524 PB (Polished Brass), FFTIF 6524 PG (Polished Gold), FFTIF 6524 PS (Polished Stainless), FFTIF 6524 SB (Satin Bronze), FFTIF 6524 SC (Satin Champagne), FFTIF 6524 SS (Satin Stainless), FFTIF 6524 BK (Matte Black), FFTIF 6524 GM (Gunmetal)
