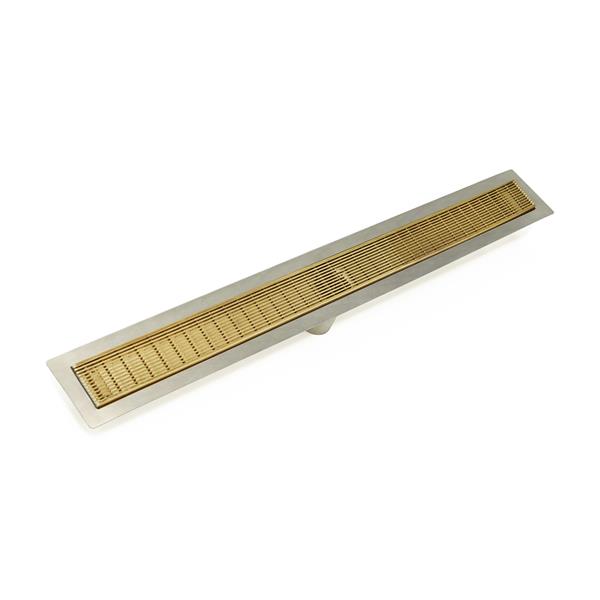

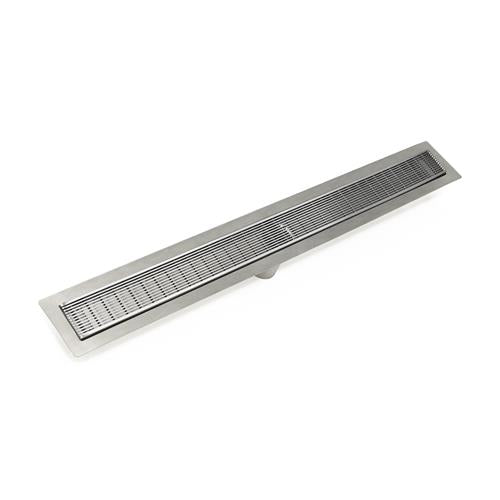

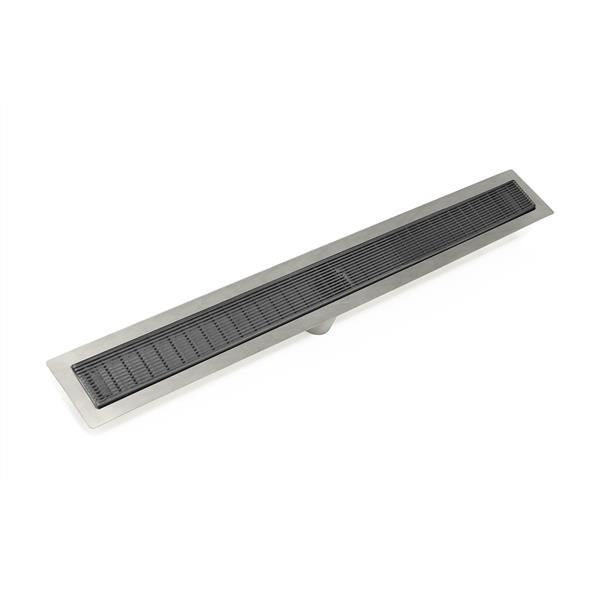

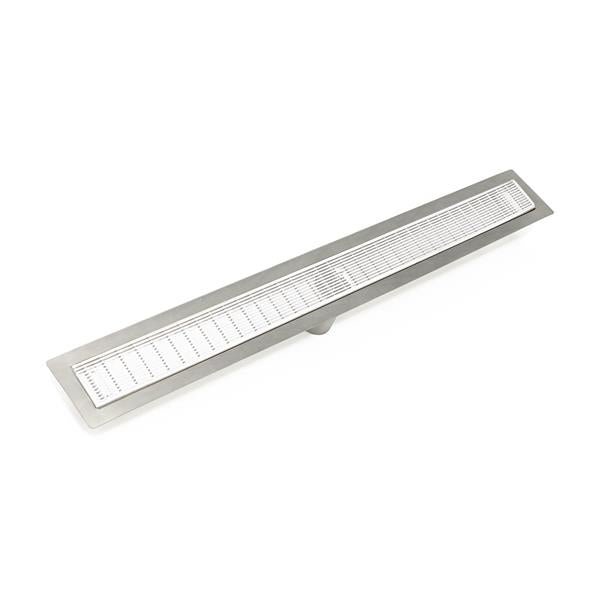

Infinity Drain - 60 Inch FF Series Complete Kit

Infinity Drain - 60 Inch FF Series Complete Kit

  • Fixed Flange, 2-1/2 Inch Wedge Wire, Stainless Steel Channel, 60 Inch Complete Kit for FFAS 65
  • Fixed Flange: Pre-pitched channel with set length with center outlet location
    Waterproofing: Liquid membrane, Fabric sheet
    12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
    Finished width: 2-9/16 Inch , Min. height above subfloor: 1-1/16 Inch
    Capacity: 9 gallons per minute
    No-hub connection to waste line with rubber coupling (not included)
    Recess channel into subfloor with placement brackets ST 65
    Metal edge detail available ME 96
  • Compatible with Liquid/Fabric waterproofing
    Capacity: 9 gallons per minute
    2 Inch No-hub outlet connection via rubber coupling (not included with channel)
  • Manufacturer's Part Number(s): FFAS 6560 SS, FFAS 6560 PS, FFAS 6560 SB, FFAS 6560 ORB, FFAS 6560 BK
$1,383.75 $1,845.00
| /
