Shower Drains

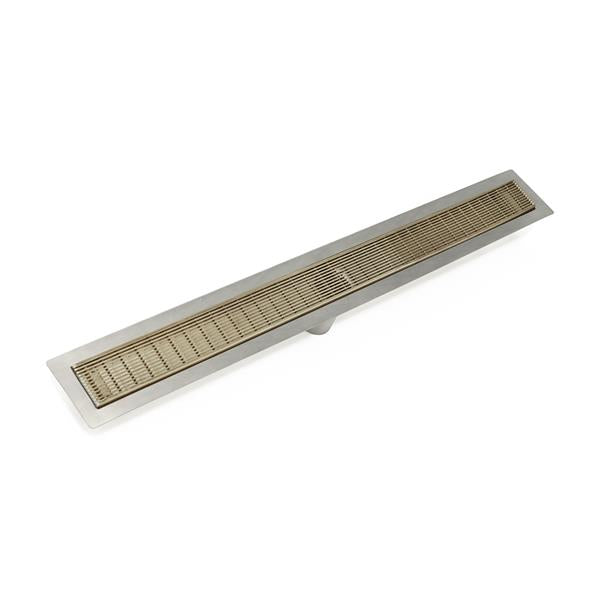

- Fixed Flange, 2-1/2 Inch Wedge Wire, Stainless Steel Channel, 24 Inch Complete Kit for FFAS 65
- Fixed Flange: Pre-pitched channel with set length with center outlet location
Waterproofing: Liquid membrane, Fabric sheet
12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
Finished width: 2-9/16 Inch , Min. height above subfloor: 1-1/16 Inch
Capacity: 9 gallons per minute
No-hub connection to waste line with rubber coupling (not included)
Recess channel into subfloor with placement brackets ST 65
Metal edge detail available ME 96
- Compatible with Liquid/Fabric waterproofing
Capacity: 9 gallons per minute
2 Inch No-hub outlet connection via rubber coupling (not included with channel)
- Manufacturer's Part Number(s): FFAS 6524 PB (Polished Brass), FFAS 6524 SS (Satin Stainless), FFAS 6524 PS (Polished Stainless), FFAS 6524 SB (Satin Bronze), FFAS 6524 ORB (Oil Rubbed Bronze), FFAS 6524 MW (Matte White), FFAS 6524 GM (Gunmetal), FFAS 6524 BK (Matte Black), FFAS 6524 SC (Satin Champagne), FFAS 6524 PG (Polished Gold)
