Collection
Finishing
Satin Stainless,
Matte Black,
Oil Rubbed Bronze,
Polished Stainless,
Satin Bronze,
Gunmetal,
Matte White,
Polished Brass,
Polished Gold,
Satin Champagne,
Satin Brass,

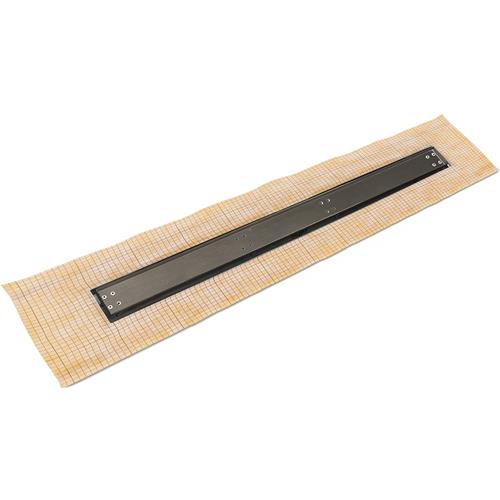

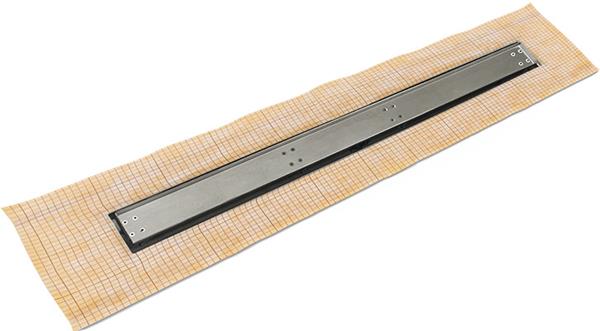

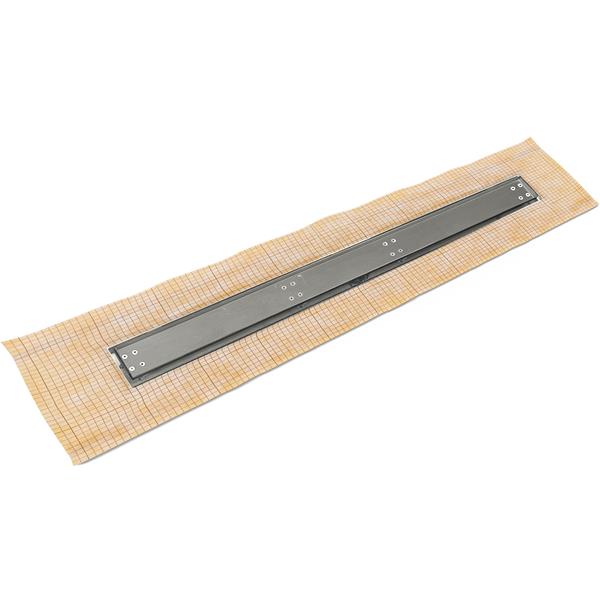

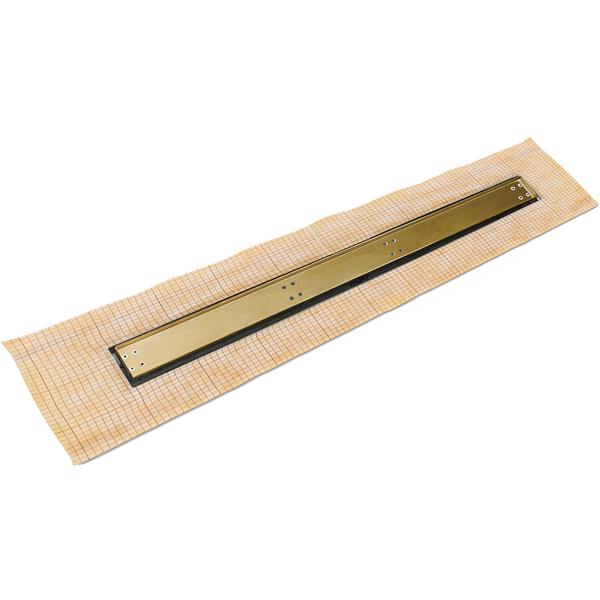

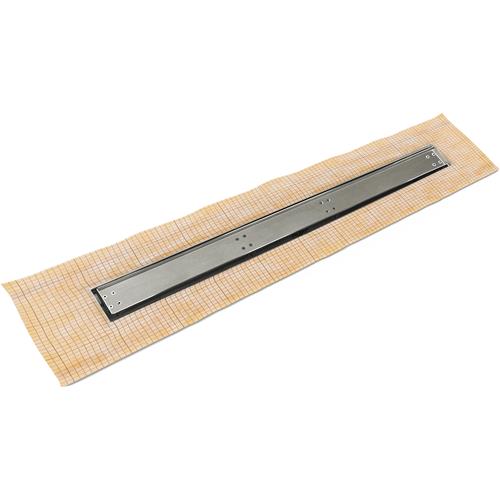

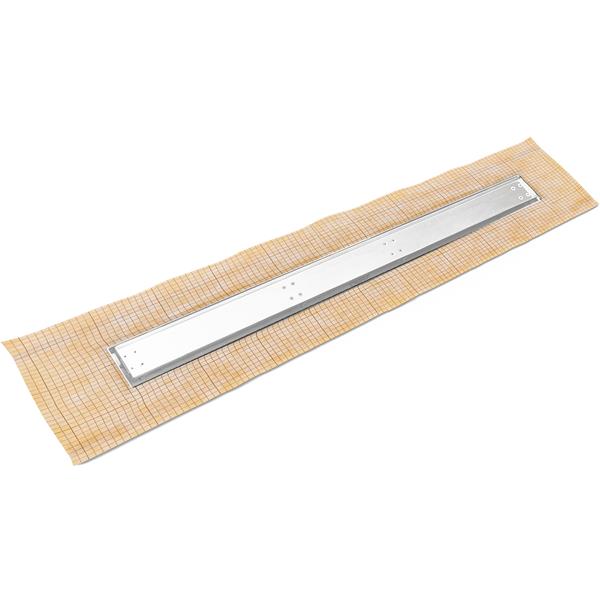

- with Tile Insert Frame
- Fixed Flange: Pre-pitched channel with set length with center outlet location
Factory applied Schluter° Kerdi Membrane
16 gauge, 304L stainless steel tile insert frame with stainless steel channel
Accepts flooring material up to 3/8″ material thickness
Finished width: 2-9/16″, Min. height above subfloor*: 1-1/16″
Capacity: 9 gallons per minute
No-hub connection to waste line with rubber coupling (not included)
Recess channel into subfloor with placement brackets ST 65
- Manufacturer's Part Number(s): FCSTIF 6536 PS (Polished Stainless), FCSTIF 6536 SR (Satin Brass), FCSTIF 6536 SS (Satin Stainless), FCSTIF 6536 SC (Satin Champagne), FCSTIF 6536 SB (Satin Bronze), FCSTIF 6536 PB (Polished Brass), FCSTIF 6536 ORB (Oil Rubbed Bronze), FCSTIF 6536 MW (Matte White), FCSTIF 6536 GM (Gunmetal), FCSTIF 6536 BK (Matte Black), FCSTIF 6536 PG (Polished Gold)
